Hensoldt ZF 4-16×56 FF LT Riflescope

A Hensoldt ZF 4-16×56 FF LT will be a week to 10 day delivery depending on stock availability Hensoldt ZF riflescopes are manufactured in Wetzlar Germany by Zeiss Sports optics under the design and control of Cassidian Optronics. EADS is the parent company of Cassidian along with other companies such as Airbus and Eurocopter. Cassidian specializes in state of the art solutions for armed and security forces worldwide with Hensoldt representing their stake in the small arms weapon sight business. Hensoldt furnishes the right gear for every mission: long intermediate or short range. All devices stem from the same reliable source thus guaranteeing full modularity. Offering all the convenience of truly ergonomic design these robust products deliver outstanding optical performance whatever the conditions may be. In addition to high optical performance the Hensoldt ZF 4-16×56 FF LT makes the tactical possibilities for mission forces decisive. Hensoldt addressed this aspect while reworking the Hensoldt ZF 4-16×56 FF. The redesigned turrets are self locking i.e unintentional adjustment of the reticle is not possible. The elevation turret provides ballistic compensation of 14.5 mrad (145 clicks) in one revolution. Due to a total adjustment range of 22 mrad the user has sufficient reserves for zeroing. Users can specify themselves if the turret stops at 0 or at 5 for example. The short design and optical quality were not compromised when creating the Hensoldt 4-16×56 FF LT. Parallax Compensation Hensoldt ZF 4-16×56 riflescopes are equipped with side parallax correction from 50m to infinity. Reticle illumination The Hensoldt ZF 4-16×56 reticle is equipped with infinitely adjustable illumination so targets can be acquired even at twilight First or second focal plane If the reticle is in the first focal plane its size changes in sync with the magnification. This makes it very easy to determine the range without having to recalculate. The size of a reticle in the second focal plane does not change when the magnification is adjusted. The subtension of the reticle changes with the scale of the set magnification. This Hensoldt ZF 4-16×56 is a first focal plane model. Specifications:

• More anti-reflective lens provides a maximum sharpness and light transmission.
• Ca. 92% light transmission.
• Wide ranges.
• Very compact construction.

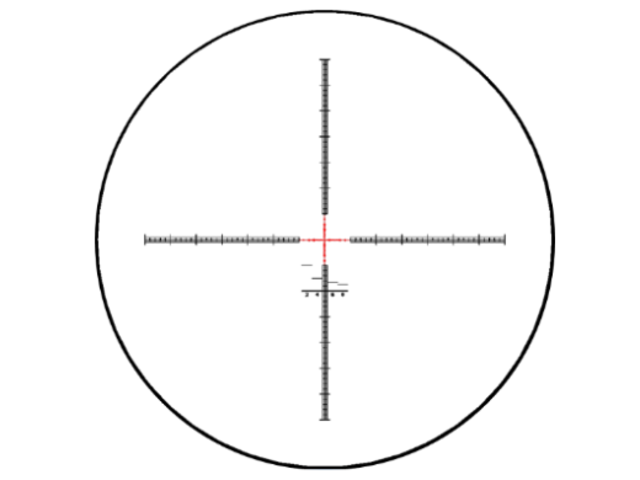

• Co Great Spirit reticle.
• Waterproof moisture proof.
• First Focal Plane
• Nitrogen Filled.
• Automatic shutdown of the reticle illumination for 3h.
• Low battery alert. Reticle illumination pulsates when you light it.
• Miljusterat.
• LT (lockable turrets) ZERO STOP.
• Allows adjustment of 0.5 MRAD below 0 to allow use under different weather conditions.
• Battery-powered lighting:
• 3V CR2032 withstand -20 degrees.
• 3 V BR2032 withstand -40 degrees.

• Magnification: 4-16x.
• Lens Diameter: 56mm.
• Tube diameter: 34mm.
• Exit pupil: 14-3.5mm.
• Field of view: 8.7-2.5m / 100m.
• Eye distance: 90-110mm.
• Diopter adjustment: -2.5 to +2.
• Light transmission: ca. 92%.
• Number MIL / click: .1 Mil.
• Maximum height adjustment: 215cm / 100m (to achieve a maximal height adjustment requires a montage with a slope).
• Maximum height adjustment (without slope): 145cm / 100m.
• Maximum wind adjustment: 75cm / 100m.
• Parallax: from 50m.
• Height: 334mm.
• Weight: 900g.
• Warranty: 2 years.

• Battery.
• Lens protection.
• Detailed instructions.
• Cordura bag with associated tools.
